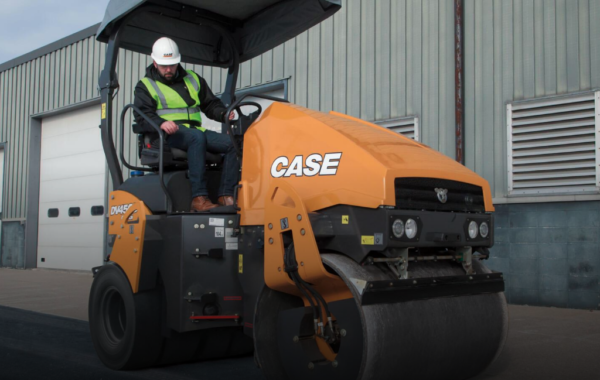

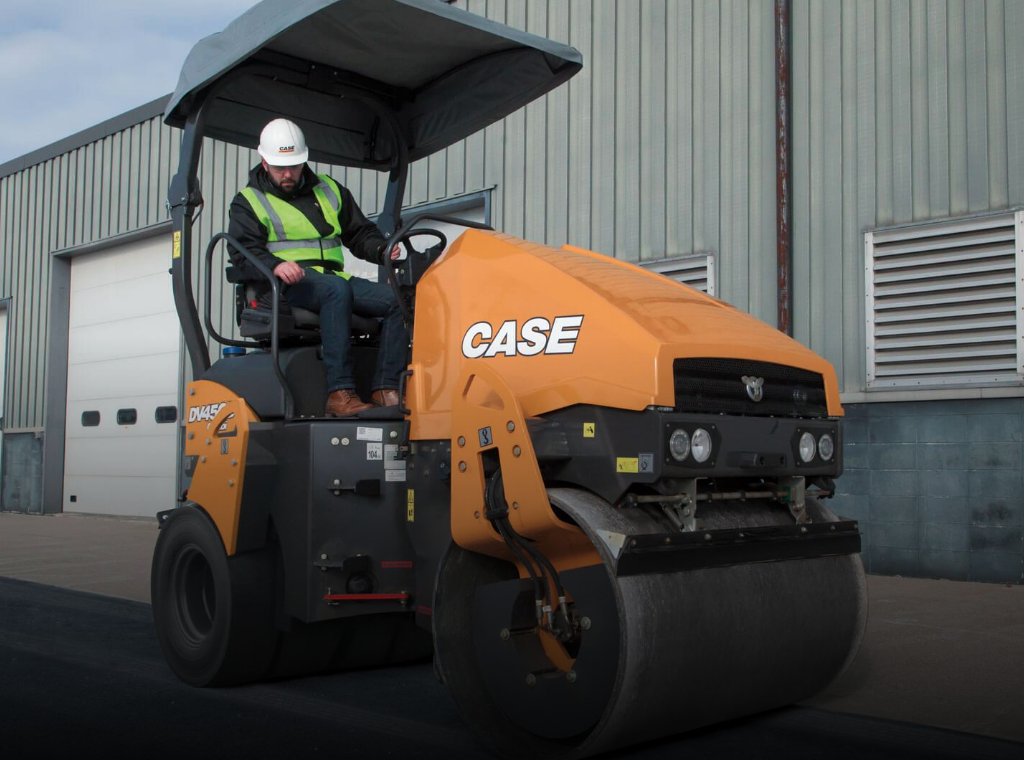

DV45CE Asphalt Compactor

DV45CE Asphalt Compactor

The DV45CE is the kind of machine that delivers on all fronts. It starts with plenty of compacting might, in the form of centrifugal forces that approach 13,000 lbs. This model gets rear kneading pneumatic tires that produce higher-quality compaction and make it a solid choice for asphalt and granular applications. The size makes it easy to transport. The control features include dual amplitudes and dual frequencies that further the productivity. And there’s a vibration-reducing platform to keep you from feeling all the compacting that’s quickly getting you closer to done.

Purpose-Built Performance

From first to final pass, the CASE DV45CE improves densities, reduces voids and saves time. The front drum delivers centrifugal forces of more than 12,350 lbf. and features a robust design with tapered edges to avoid tearing. This is complemented with standard functions such as dual amplitudes and frequencies (45 and 57 Hz) as well as an auto-vibration shutoff switch to help with starts or stops. An ACE Force Intelligent Compaction system is also available.

The kneading action of the rear pneumatic tires improves surface quality and provides a better smooth. A superior water system features adjustable pressurization and dual filtration to provide steady flow to every nozzle. And thanks to an articulated and oscillating frame with no overhangs, operators are able to compact alongside high curbs, through turns and near obstacles.

Common-Sense Fuel Efficiency

Tier 4 Final compliance is achieved with a DOC (Diesel Oxidation Catalyst). This solution allows for efficient performance without any additional effort from the operator. There’s no new fluid to add and no regeneration downtime. It’s emissions made easy.

CASE Comfort & Visibility

The overhang-free design of the DV45CE, combined with a lateral sliding suspension seat, make it easy for operators to get the best vantage point down to the pavement from either side of the machine. And with switches for water and vibration shutoff on the seat’s integrated drive lever instead of on the dash, operators can make adjustments when necessary and without taking their eyes off the pavement. Additional comfort options include a weather canopy, a heated seat and dual-drive levers.

Simple Serviceability

The hood of the DV45CE flips forward to give full access to engine service items and daily checkpoints, fill ports and drains. Routine maintenance items are conveniently located on one side of the machine and spray nozzles are also easily accessible.
