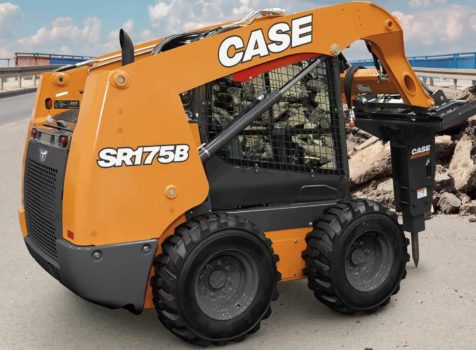

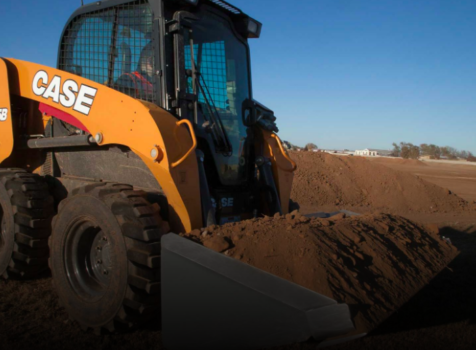

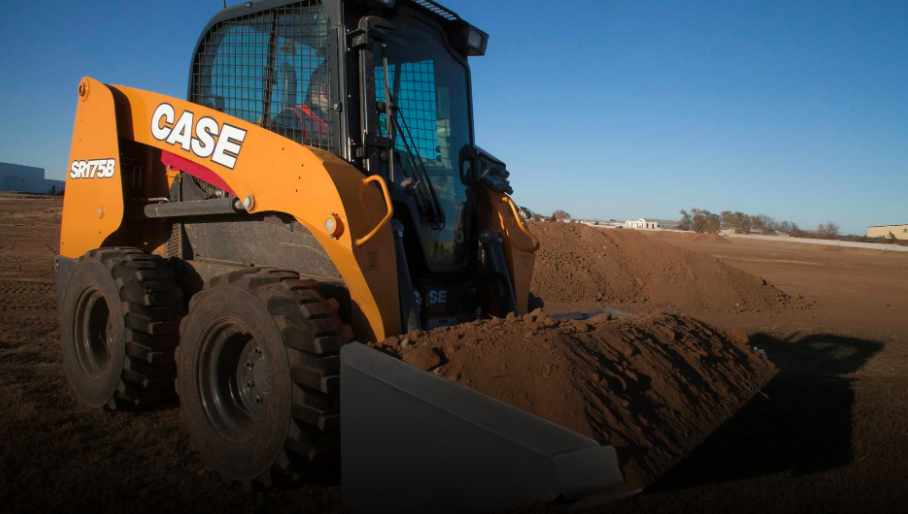

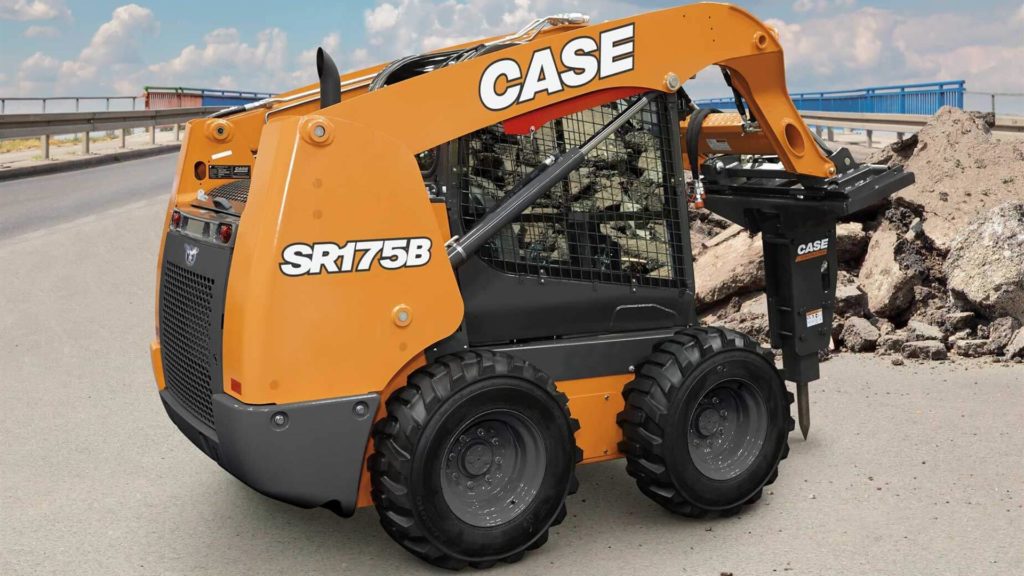

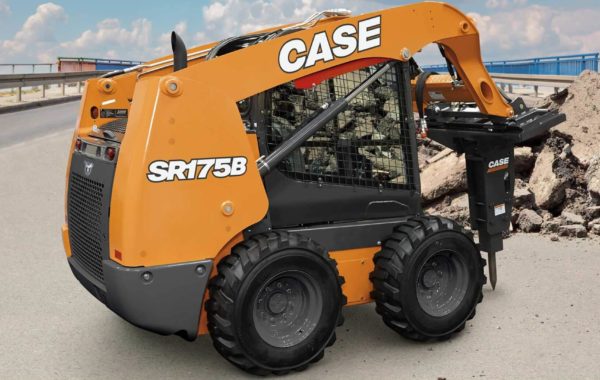

SR175B

SR175B

The SR175B packs a lot of performance into a compact footprint and provides owners with a simple and intuitive platform for dirt work and material handling. It’s easy to own, operate and maintain — and at 67 horsepower features a maintenance-free Tier 4 Final emissions solution (no DPF). Optional counterweights further increase rated operating capacity (up to 1,850 pounds) for even greater lifting and carrying performance.

FEATURES
Visibility and Comfort
CASE skid steers feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. Each model features one of the industry’s widest cabs, and new control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.

Optimal Control
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. New electro-hydraulic models with the all-new 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.

Productivity and Performance
At 1,750-pounds rated operating capacity and 67 horsepower, the radial lift SR175B is ideal for light- to medium-duty applications where basic earthmoving, loading and attachment operations are required. Standard (3,050 psi and 20.6 gpm) and optional high-flow (3,050 psi at 30.7 gpm) auxiliary hydraulics make it excellent for a broad range of attachments and applications.

Ease of Ownership
All critical checks and service points are grouped at the rear of the machine for easy access, and the all-new 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance. At 67 horsepower, the SR175B features a maintenance-free Tier 4 Final emissions solution that requires no fluids and no lifetime filter service or replacement (no diesel particulate filter (DPF).
