Zone 20 H Site Lasers

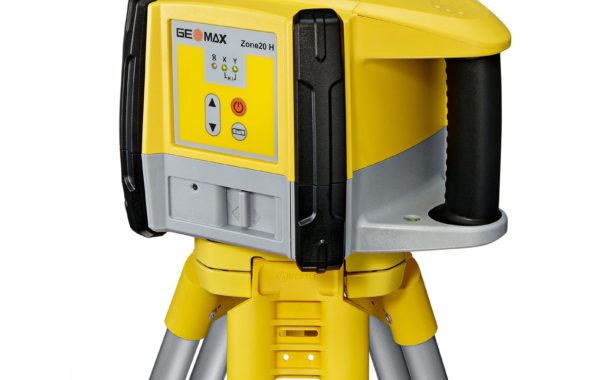

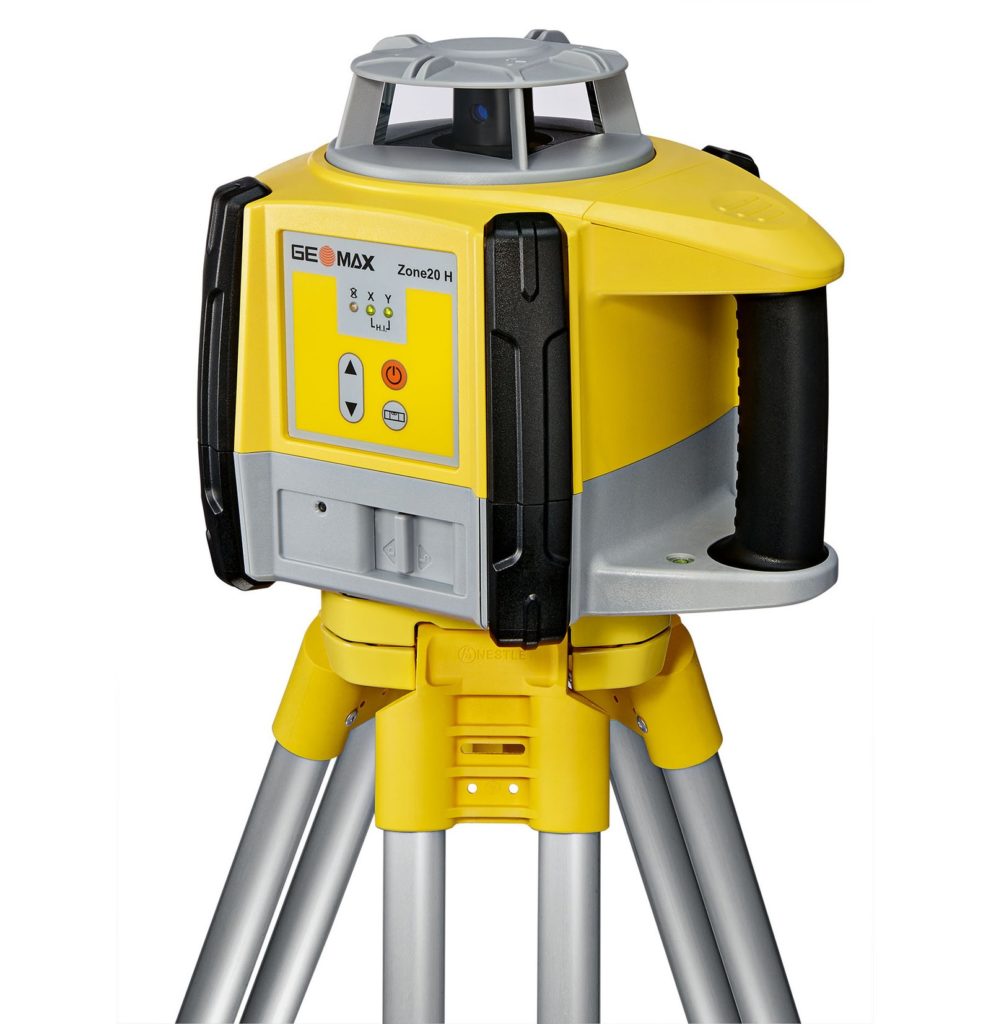

Zone20 H is an economic and rugged entry level rotating laser. With a solid built housing and a straightforward interface, this laser offers all functions needed for regular and flexible use. Zone20 H is an automatic horizontal laser that allows grade setting manually in two axes. It is easy to use and highly reliable in any element.

Tough and easy to use

The Zone20 H complies with the IP67 class of water and dust protection due to its ruggedized housing, as well as the glass cage. The rubber molded handles and bumpers provide great protection and easy grip. With its unique Li-Ion battery concept, the laser has 300% greater lifetime than with NiMh batteries. It is fully charged in only five hours, which keeps the laser’s downtime to a minimum. With only four buttons, as well as an informative LED-indication on the laser, the device is very simple and easy to use for everybody. Information regarding battery and tool status can be quickly obtained.

Reliable operation

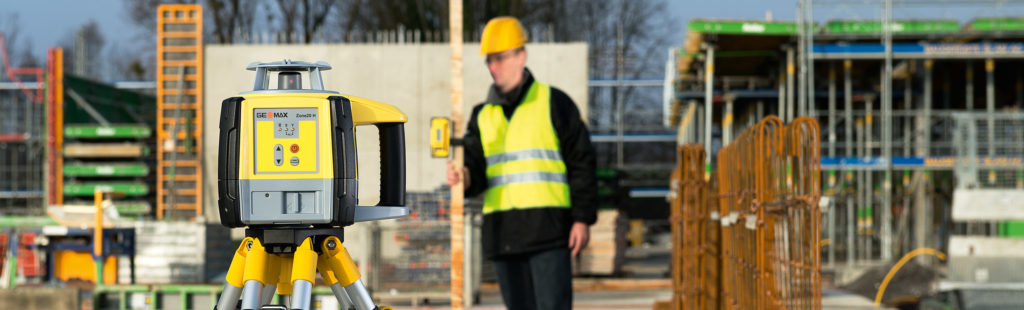

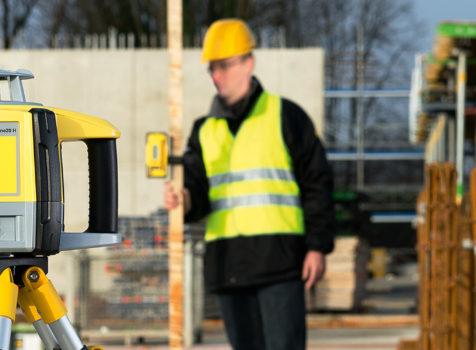

The Zone20 H is the ideal product for outside applications, such as concrete and form work. As contractors need to constantly check the height of the concrete to ensure optimum leveling, Zone20 H ensures this by allowing reliable operation. With the possibility to enter grades manually, contractors with occasional need for simple slopes, like driveways and landscaping will get the most out of the Zone20 H.
